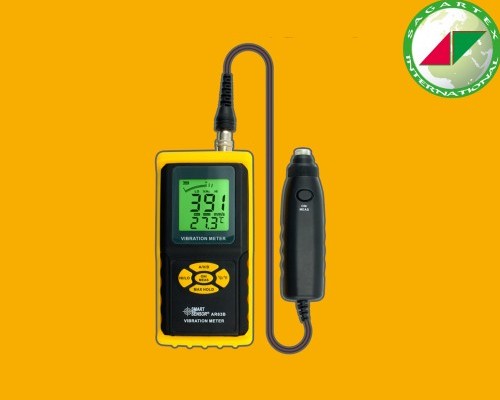

Vibration Meter AR-63B

Vibration Meter AR-63B @ Tk. 41,000

Item Specifications

Price	:	41000 BDT
Warranty Period	:	One Year Warranty
Model	:	AR63B
Stock	:	In Stock
Origin	:	China
Discount	:	No
Accessories	:	Available
Brand	:	Smart Sensor
Product	:	Available
Delivery Charge	:	100 BDT

Description

FEATURES

Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

SPECIFICATIONS

Measuring Principle	Piezoelectric Ceramic Accelerometer (shear-type)
Acceleration Range	0.1~199.9m/s2
Velocity Range	0.1~199.9m/s
Displacement Range	0.001~1.999mm
Acceleration Frequency Range	10Hz~1KHz (LO) 1KHz~15KHz (HI)
Velocity Frequency Range	10Hz~1KHz
Displacement Frequency Range	10Hz~1KHz
Accuracy	±5%H ±2 digits
Signal Output	AC output 2V peak ( Display full scale )
Max Hold Function	√
Temperature Measurement	√
℃/℉Selection	√

PACKING INFORMATION

Power	9V Battery
Product Net Weight	137g
Product Size	1507030mm
Packing Style	Aluminum Box
Standard Quantity Per Carton	12PCS
Standard Carton Size	4532.552cm
Standard Carton Gross Weight	14.14kg
